Description

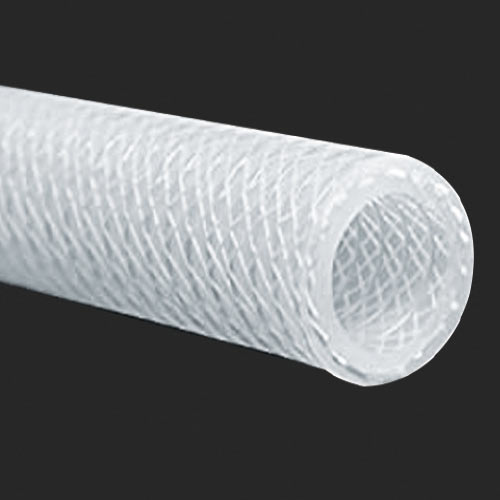

Duct silicone hose reinforced with polyester and SS 316L helical wire is suitable for vacuum and pressure application. Duct is having high burst pressure rating along with high vacuum resistance. The product is suitable in pressurized fluid transfer application.
FEATURES:
• Highly suitable for pressurized fluid transfer application.
• Having antistatic properties to dissipate static electrical charge generated.
• Odorless and tasteless.
• Sterilization by autoclave, Gamma radiation & ETO.
• Available with SS 316L tri-clovers end or without T/C end.
| APPLICATION: |
| Pharmaceutical processing. |
| Food processing. |
| High vacuum application. |
| Biotechnology. |
| Powder and fluid transfer. |
| Load cell culture. |
| Bulk transfer. |
NOTE: Customization of color available. Also available in platinum & peroxide cured silicone
ULTRASIL DUCT HOSE SIZES
| Catalogue No. | Size (mm) | Size (Inch) | Working Pressure (Bar) | Bursting Pressure (Bar) | Vacuum (mm Hg) | Bend Radius (mm) | |
| ID | OD | Inch | |||||
| SH-D-6013 | 6 | 13 | 1/4” | 13 | 45 | 760 | 60 |
| SH-D-9016 | 9 | 16 | 11/32” | 12.5 | 43.5 | 760 | 70 |
| SH-D-12020 | 12 | 20 | 1/2″ | 12 | 40 | 760 | 80 |
| SH-D-16024 | 16 | 24 | 5/8” | 12 | 36 | 760 | 80 |
| SH-D-19027 | 19 | 27 | 3/4″ | 11.5 | 34.5 | 760 | 90 |
| SH-D-25035 | 25 | 35 | 1” | 10 | 30 | 760 | 125 |
| SH-D-32042 | 32 | 42 | 1 1/4” | 9 | 27 | 500 | 140 |
| SH-D-37047 | 37 | 47 | 1 1/2” | 8.5 | 25.5 | 500 | 170 |
| SH-D-50062 | 50 | 62 | 2” | 7 | 21 | 400 | 240 |
